MICROgarde II IP + PSU Controller


Delivering cost-effective networkable performance, MICROgarde II IP + PSU Controller is a two-door access control unit; providing reliable access control for up to 400 doors. Supplied with its own power supply unit for added security, MICROgarde II IP + PSU Controller delivers a highly effective solution with central control and event reporting and may be used either independently or as part of a network


2 Door

2 or 4 TDSi Readers

Up to 25,000 Users

RS232, RS485, TCP/IP

TDSi Part Number 5002-1807
Dimensions 365 x 310 x 90mm
Weight 3.4kg
Operating Environment -5°C to + 45°C, 0 to 95% RH (non-condensing)
Input 100 – 240Vac, 50 – 60Hz, 1.8A Max
Output 13.8Vdc (Nominal) (5A Max) 5 X 1A (individually fused)*
Battery 10.5 to 12.3Vdc 1 x 7Ah sealed lead acid (optional)
Users Up to 25,000 (with expanded memory MG I),
Doors 1 or 2
Readers 2 or 4 using TDSi readers in a read-in read-out configuration.
Alternatively 2 readers equipped with industry standard clock & data (ABA track 2 emulation), 26-bit
Wiegand and HiD standard 37-bit (H10302) output formats
Inputs 4 in total; 2 used per installed door
Outputs 2 (30 V, 2 A rating) in total; 1 used per installed door
Expansion Options Changeover relay module adds 2 additional relay outputs and 4
additional inputs
Time Groups 64
Anti-passback Timed and true
Mantrap Function Yes, MG II only
Communication RS232, RS485, TCP/IP

  • Up to 25,000 card capacity with MICROgarde II
  • 4 reader + 2 door controller
  • Multiple reader formats supported
  • 5A mains power supply unit
  • Standby battery facility & charging
  • 1,000 to 50,000 event buffer
  • Compatible with TDSi EXgarde PC & GARDiS Software
  • Robust monitored enclosure design
  • Integrated tamper switch
  • Supports supervised inputs
  • High-capacity Form C changeover relays
  • 3-year warranty

MICROgarde II IP + PSU Controller Datasheet

Ideal for Medium Businesses

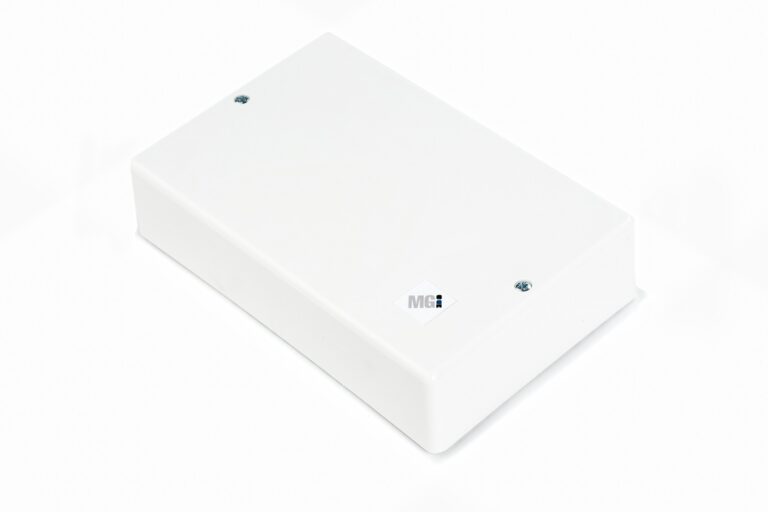

MICROGarde Case
