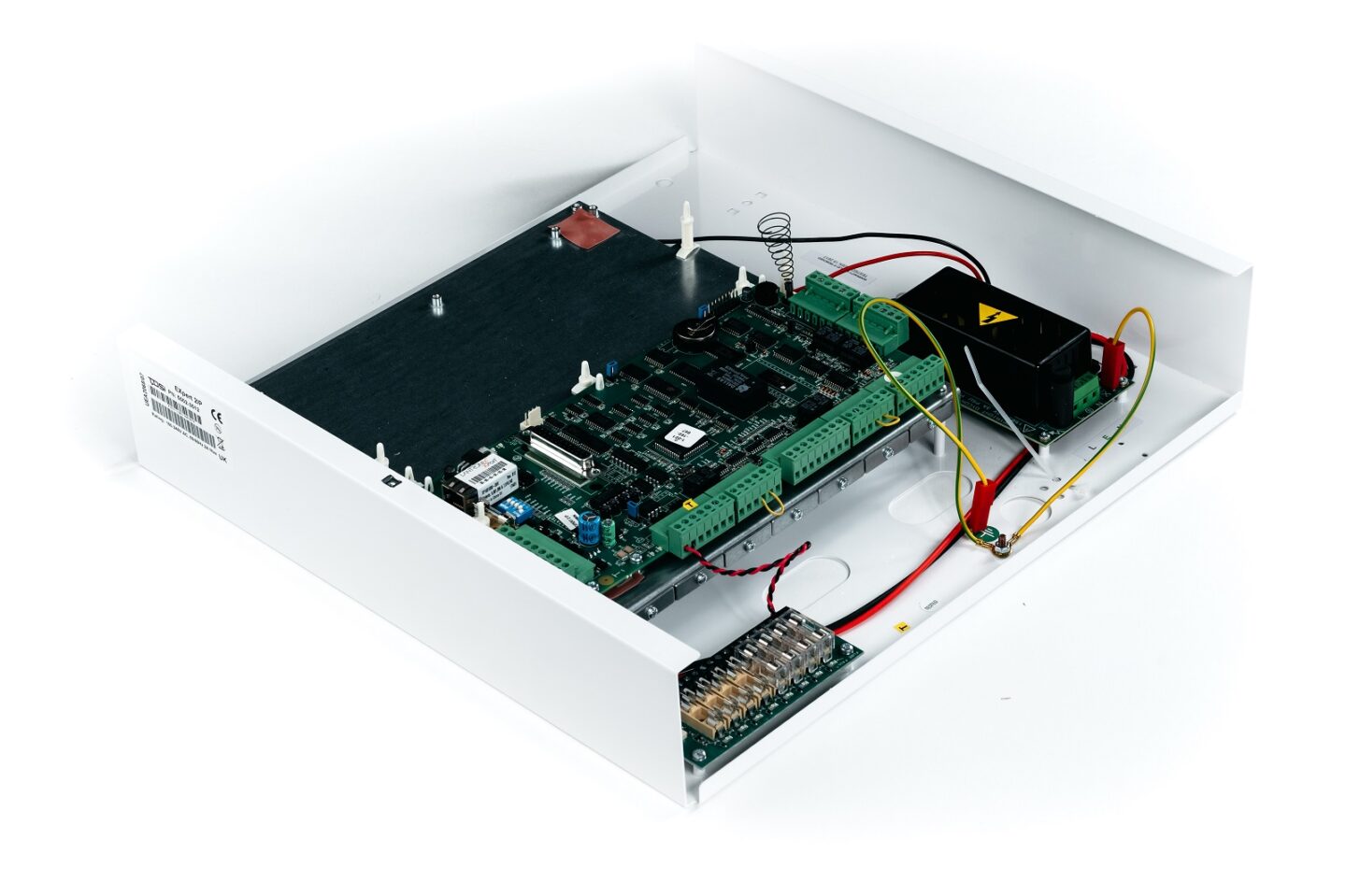

EXpert2 Controller

5002-3012

A fully-featured, networkable access control unit - the EXpert2 boasts a high specification with supervised inputs and relays, making it suitable for monitoring and signaling alarm conditions as well as integration with intruder alarms and Building Management Systems.

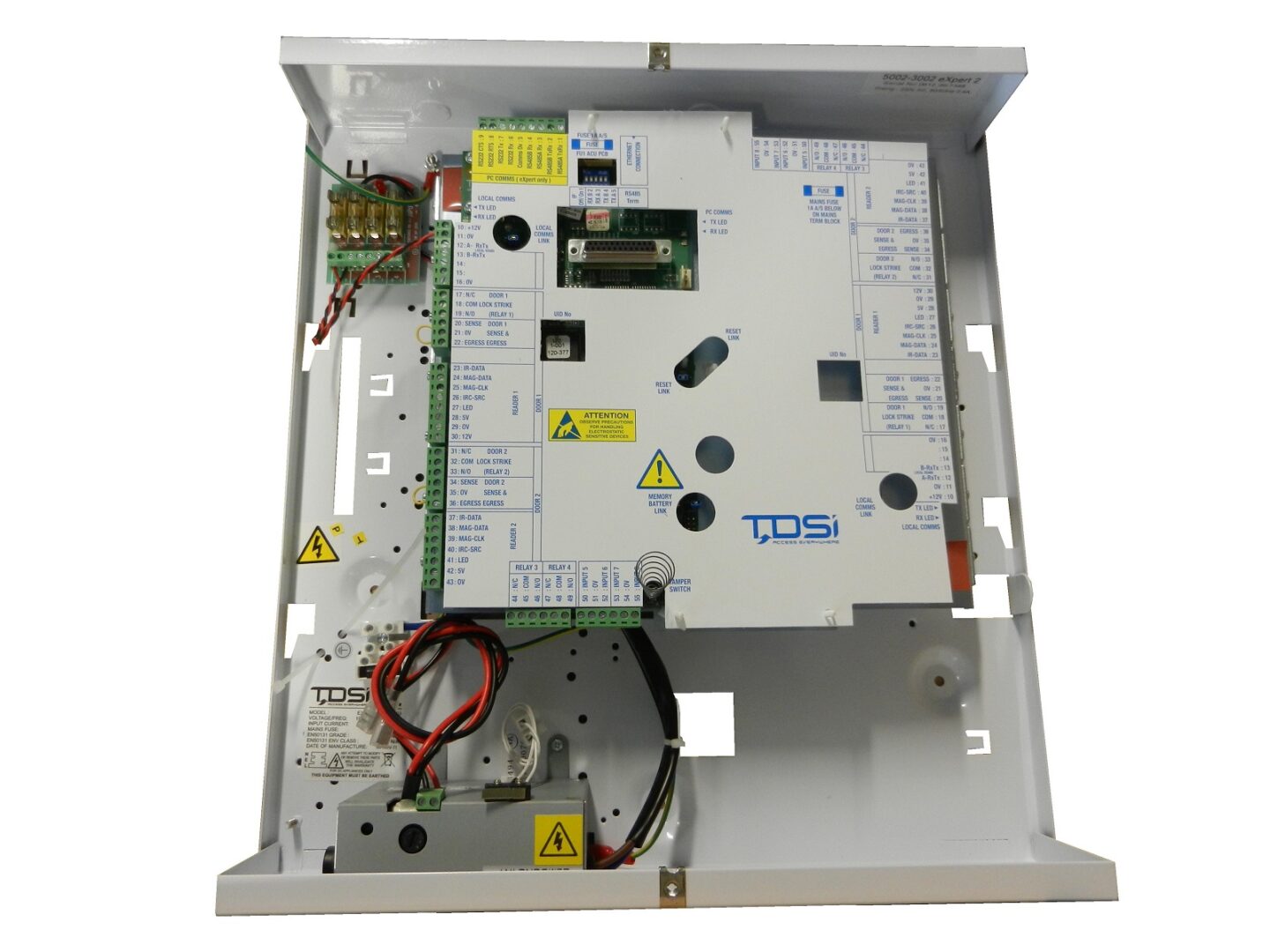

The expansion capabilities of this controller make it highly versatile and enable the access control system to be easily added to at a later date. The EXpert2 is the ideal platform for those who demand the most from an access control system. This master 2 door controller is supplied with full TCP/IP connectivity as well as a power supply and RS485 connectivity. Housed in a robust metal enclosure, EXpert2 also has space available for optional Expander slave or I/O boards.

Benefits

1 or 2 Doors

2 TDSi Readers

Up to 47,000 Users

RS232, RS485, TCP/IP

TDSi Part No.  5002-3012
Dimensions  390 x 410 x 90 mm
Weight 5.7 kg
Operating Environment  -5°C to + 45°C, 0 – 95% relative humidity (non-condensing)
Input  100-240 Vac, 50-60Hz, 1.8A max
Output  13.8Vdc (Nominal) (4A Max)
Battery  10.5 to 12.3Vdc 1 x 7Ah Sealed lead acid (optional)
Max Credentials  47,000
Doors  1 or 2
Readers  Maximum of 2; using the majority of reader, keypad, and biometric technologies including those with standard clock & data, 26-bit
Wiegand and HID standard 37-bit (H10302) output formats.
Inputs 8 in total; 6 spare when used in 1 door mode or 4 spare when used in 2 door mode for monitoring other equipment. Can be increased with the use of EXpert2 and EXin / EXout module. Outputs 4 changeover relay outputs (30V, 2A contact rating) in total; 3 spare when used in 1 door mode or 2 spare when used in 2 door mode for controlling other equipment. Can be increased with the use of EXpert2 and EXin/EXout.
Time Groups  64
Anti-Passback  Timed and true
Mantrap Function  Yes
Communications  RS232, RS485, Ethernet (TCP/IP) with built-in RS485 converter for up to 30 downstream controllers (EXpert2 IP Model Only)

  • 47,000 card capacity
  • 2 reader, 1 or 2 door controller
  • Main reader output formats supported
  • 4A mains power supply unit
  • Standby battery facility
  • Fully expandable – up to 7 EXpert2 slave units per master giving control of up to 16 doors
  • Optional 32 input, 16 output module
  • Local programming using EXkeypad accessory
  • 1,000 event buffer
  • Compatible with EXgarde PC / GARDiS Software
  • Robust enclosure design
  • Integrated tamper switch
  • Supports supervised inputs
  • High capacity Form C change-over relays
  • Integral TCP/IP port
  • 3-year warranty
